Koi Pond Water Quality Management: AC Koi Biological Pillar for Efficient Filtration and Easy Maintenance

---

Update time: 26-08-11    Views: 10

For every koi enthusiast and commercial farm operator, water quality is always the first threshold to raising healthy koi. As large ornamental fish, koi produce significant waste. Without a robust filtration system, harmful substances like ammonia and nitrite can accumulate rapidly—leading to loss of appetite, dull coloration, disease, and even mass mortality. Therefore, an efficient, stable, and easy-to-maintain filtration system is the lifeline of every koi pond.



The Pain Points of Traditional Koi Pond Filtration: Complex Installation and Tedious Maintenance



In traditional koi pond filtration design, mechanical and biological filtration are typically separated—filter mats are laid first to intercept debris, followed by biological media to cultivate nitrifying bacteria. While effective, this approach brings several practical challenges:



- Large footprint: Mechanical and biological media require separate layers or chambers, demanding more space in the filter compartment;

- Labor-intensive installation: Different media need to be cut, laid, and fixed individually, consuming considerable time and effort;

- Difficult maintenance: Cleaning requires disassembling layers one by one and sorting media types, risking disruption to the established nitrifying system;

- Uneven water flow: Stacked traditional media often creates flow shortcuts, leaving portions of the filter bed underutilized.



Is there a solution that integrates mechanical and biological filtration into one unit while remaining easy to install and maintain? The AC Koi Biological Pillar provides the answer.





AC Koi Biological Pillar: Patented Design, A New Benchmark in Integrated Filtration



The AC Koi Biological Pillar (Patent No.: 2024204437079) is a next-generation modular filter media developed by AC specifically for koi pond filtration. It breaks away from the traditional "filter mat first, biological media second" separated approach by integrating mechanical and biological filtration within a single pillar, forming a unique inner-outer layered structure. Each biological pillar functions as an independent filtration unit, and multiple pillars combined create a complete filter matrix for your pond.



Core Structure: Inner-Outer Layering for Dual Filtration

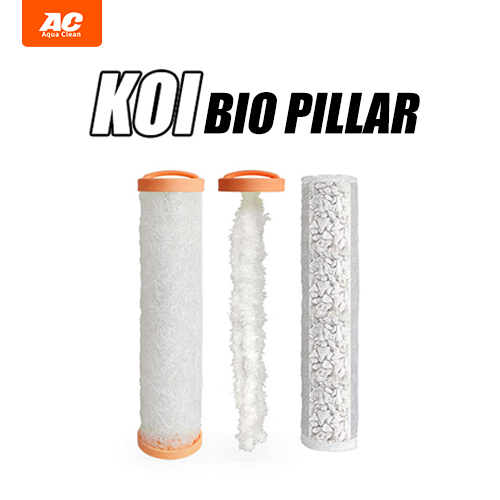

The AC Koi Biological Pillar features an innovative cylindrical design. The outer layer consists of spiral woven filter material, while the inner core is packed with high-performance biological media, creating a "mechanical outside, biological inside" concentric structure:

Layer	Material	Function
Outer Layer	Spiral woven filter mat	Mechanical filtration—effectively intercepts large particles such as fish waste and uneaten food; excellent water permeability
Inner Layer	Biological filter media	Biological filtration—provides massive surface area for nitrifying bacteria and beneficial microbes



As water passes through the outer spiral mat, large particulate debris is mechanically trapped. The water then flows into the inner biological media core, where vast colonies of nitrifying bacteria convert ammonia (NH₄⁺) into nitrite (NO₂⁻), and further into relatively harmless nitrate (NO₃⁻)—completing the critical nitrogen cycle.

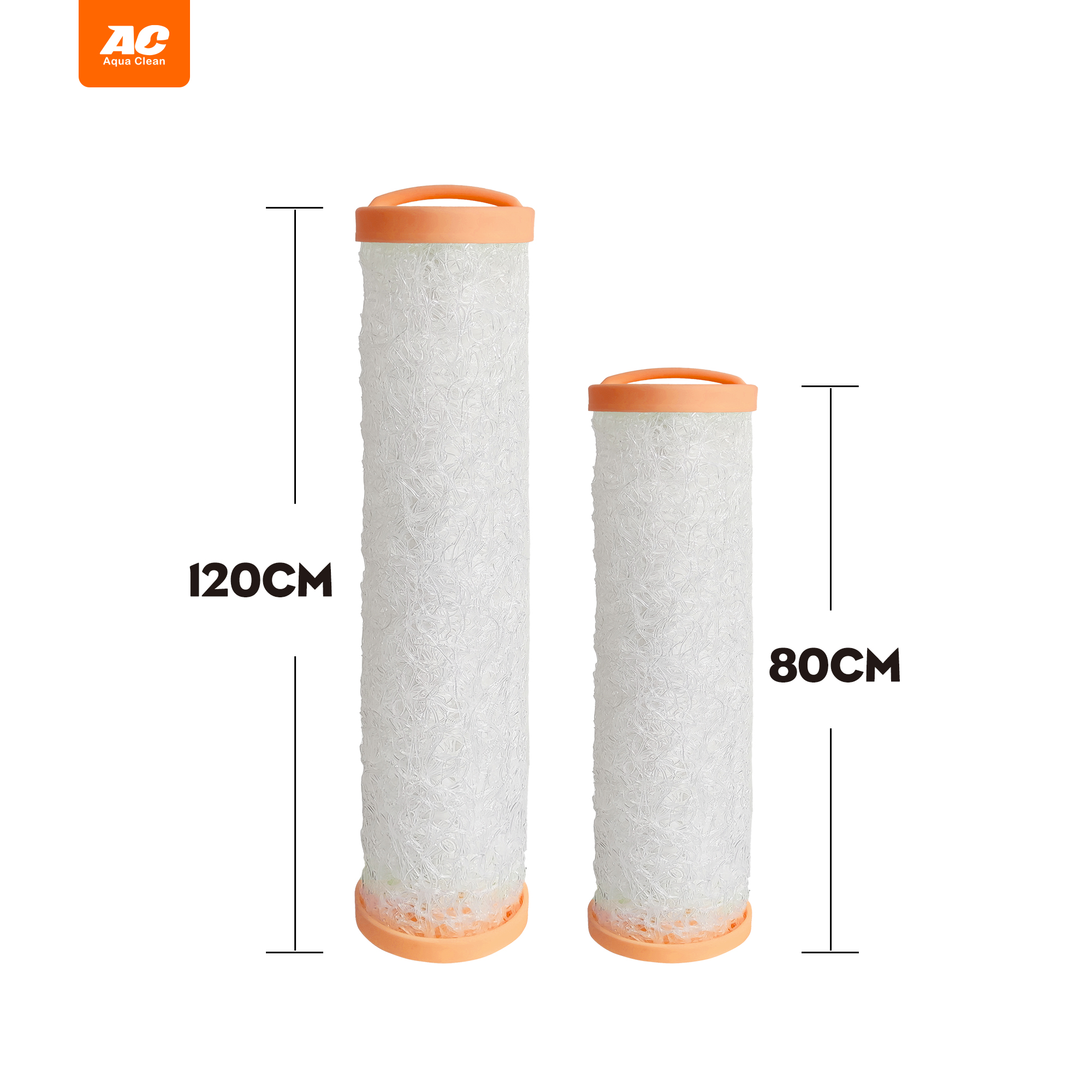

Pillar A vs. Pillar B: Flexible Configuration for Complementary Functions



The AC Koi Biological Pillar is available in two models, allowing flexible combinations tailored to your pond's specific needs:
