The Ultimate Pond Filtration Upgrade: AC Koi Biological Pillar
Update time: 26-04-27 Views: 10
Revolutionize your koi pond or aquaponics system with the AC Koi Biological Pillar(patent No. 2024204437079) — a unique dual‑layer column that integrates mechanical and biological filtration into a single self‑contained unit. Discover how it saves space, simplifies maintenance, and keeps your water crystal‑clear.
Why Your Koi Need a Smarter Filtration Solution
Keeping koi is a rewarding journey, but it comes with a constant challenge: water quality. Koi are heavy feeders and produce a large amount of organic waste. In a closed pond, this waste quickly breaks down into ammonia (NH₃/NH₄⁺) and then nitrite (NO₂⁻) — two compounds that are highly toxic to fish even in tiny amounts.
The only way to control these toxins is a mature biological filtration system, where beneficial bacteria (like Nitrosomonas and Nitrobacter) colonize a high‑surface‑area medium and convert ammonia → nitrite → relatively harmless nitrate (NO₃⁻). But traditional filters often demand multiple chambers (mechanical → biological), separate media types (brush → filter mat → ceramic rings → …), and labor‑intensive cleaning routines.
That’s why AC AquaClean — a leading filter‑media brand backed by the National Ceramic Industrial Research Center — developed something truly different.
Meet the AC Koi Biological Pillar: A Self‑Contained Filtration System
Imagine taking a full filter chamber’s worth of mechanical and biological media and compressing it into one elegant, handle‑equipped cylinder.
The Koi Biological Pillar (patent No. 2024204437079) does exactly that. It breaks the old “藤棉 first, then biological media” sequence and instead integrates both functions inside a single column.

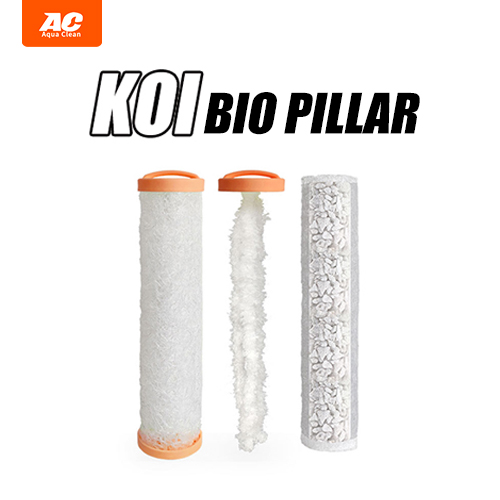

Revolutionary Dual‑Layer Architecture
The secret lies in its patented inner‑outer ring structure:
- Outer layer — spiral‑shaped filter mat: it acts as the first line of defense, mechanically trapping solid waste (uneaten food, mulm, suspended particles) while still allowing excellent water flow.
- Inner core — high‑performance biological media: this provides an enormous specific surface area where nitrifying bacteria can thrive.
The result is that each pillar functions as an independent, complete filtration system. No more separate mechanical and biological chambers; no more fishing multiple types of loose media out of your filter pit.
Two Specialized Formulations for Different Goals
AC offers the Koi Biological Pillar in two variants, so you can fine‑tune your water chemistry:

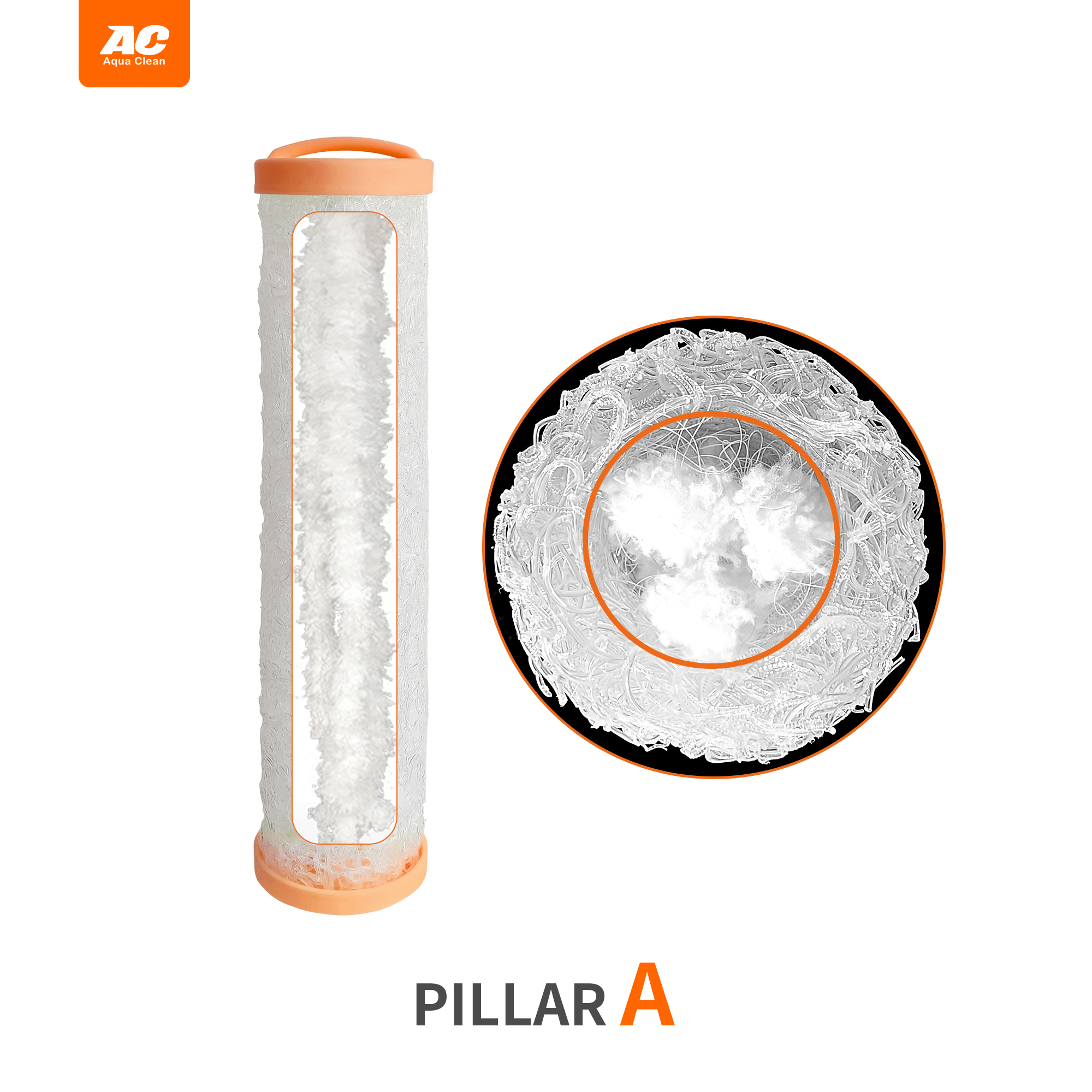

- Pillar A — Organic Biochemical Media
Engineered with ultra‑high surface area organic material, Pillar A creates the perfect home for ammonia‑ and nitrite‑oxidizing bacteria. It is your primary tool for keeping ammonia and nitrite at zero.

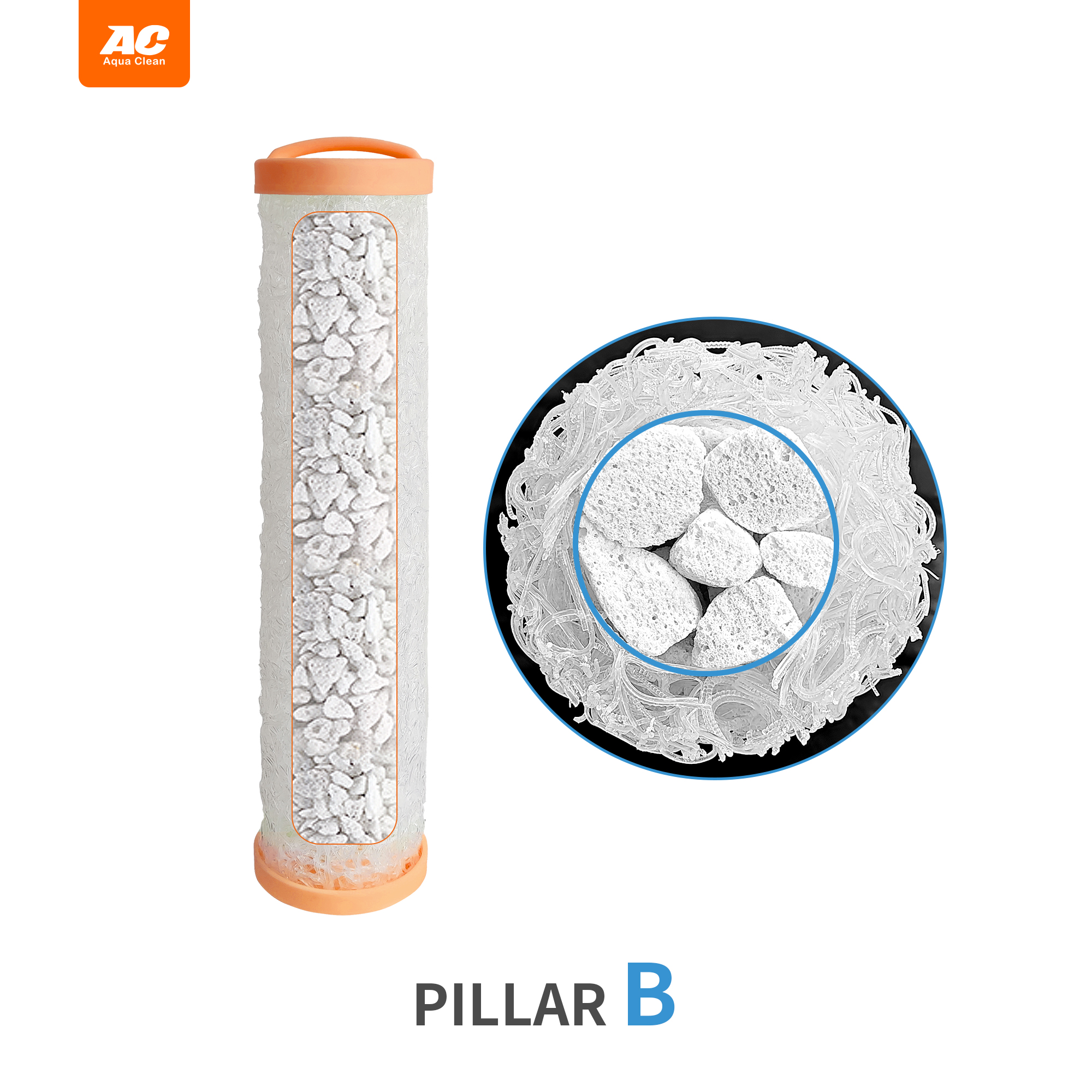

- Pillar B — Natural Mineral Media
Pillar B gradually releases calcium, magnesium, and other trace minerals that stabilize water chemistry and support probiotic bacterial colonies. It is especially valuable in soft‑water regions or when you want to enhance koi color development and bone health.
Pro tip: For optimal results, arrange the pillars in an A‑B‑A‑B alternating pattern inside your filter chamber. This creates a subtle “aerobic‑microaerobic” gradient that encourages denitrification and can improve total nitrate removal efficiency by over 40% compared to using a single media type.
The Science in Action: How the Pillar Delivers Clean Water
Once installed in your filter chamber or pond skimmer, water flows around and through each pillar. The outer spiral mat captures debris, preventing it from clogging the inner media. Meanwhile, clean water continuously washes over the inner core, supplying oxygen and nutrients to the bacterial biofilm.
Because the pillar integrates both mechanical and biological functions, you get redundancy and resilience — if one pillar is temporarily removed for cleaning, the others keep working. This modular approach is far safer than relying on a single large bio‑chamber.
And because each pillar is a standalone unit, you can easily scale the system: add more pillars when you increase your fish load, or remove some if you convert the pond to a lower‑stock planted setup.
Installation & Maintenance: Finally, A Filter You Won’t Dread Cleaning
Let’s be honest — nobody enjoys spending their weekend wrestling with filter mats or scooping loose bio‑balls out of muddy water.
The Koi Biological Pillar was designed with real‑world ease in mind:
- Cylindrical shape + built‑in handle — grab, lift, rinse, replace. No scoops, no nets, no mess.

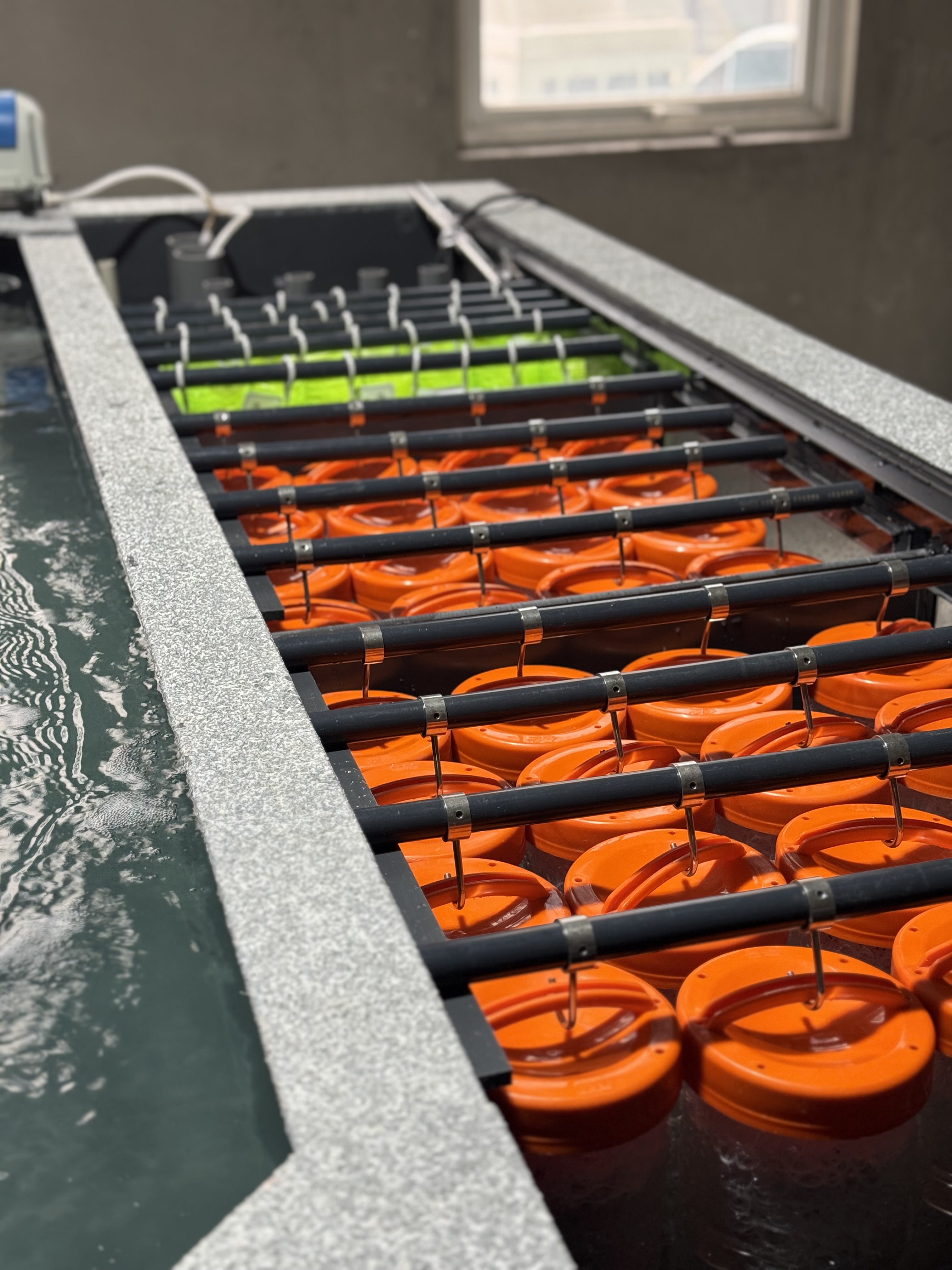

- Direct placement — simply stand the pillars upright in your existing filter chamber.
- Hanging configuration — compatible with suspension setups for custom installations.
- One‑piece construction — no loose parts to lose or reassemble.
Cleaning is straightforward: when you notice the outer mat becoming clogged (or during your regular maintenance schedule), lift the pillar out, hose it down gently with pond water (never tap water, as chlorine kills beneficial bacteria), and put it back. That’s it.
Where Can You Use the Koi Biological Pillar?
The versatility of the design makes it suitable for a wide range of aquatic systems:
- Residential koi ponds — enjoy clear water without spending hours on filter maintenance.
- Commercial fish farms — high‑density stocking demands efficient biofiltration; the pillar’s high capacity and low maintenance reduce labor costs.
- Aquaponics systems — the dual‑action design supports both fish health and plant nutrient cycling.
- Backyard landscape ponds — keep your water feature clean and odor‑free with minimal effort.
Technical Specifications at a Glance
Specification
Detail
Product Name
Koi Biological Pillar
Outer Diameter
15 cm

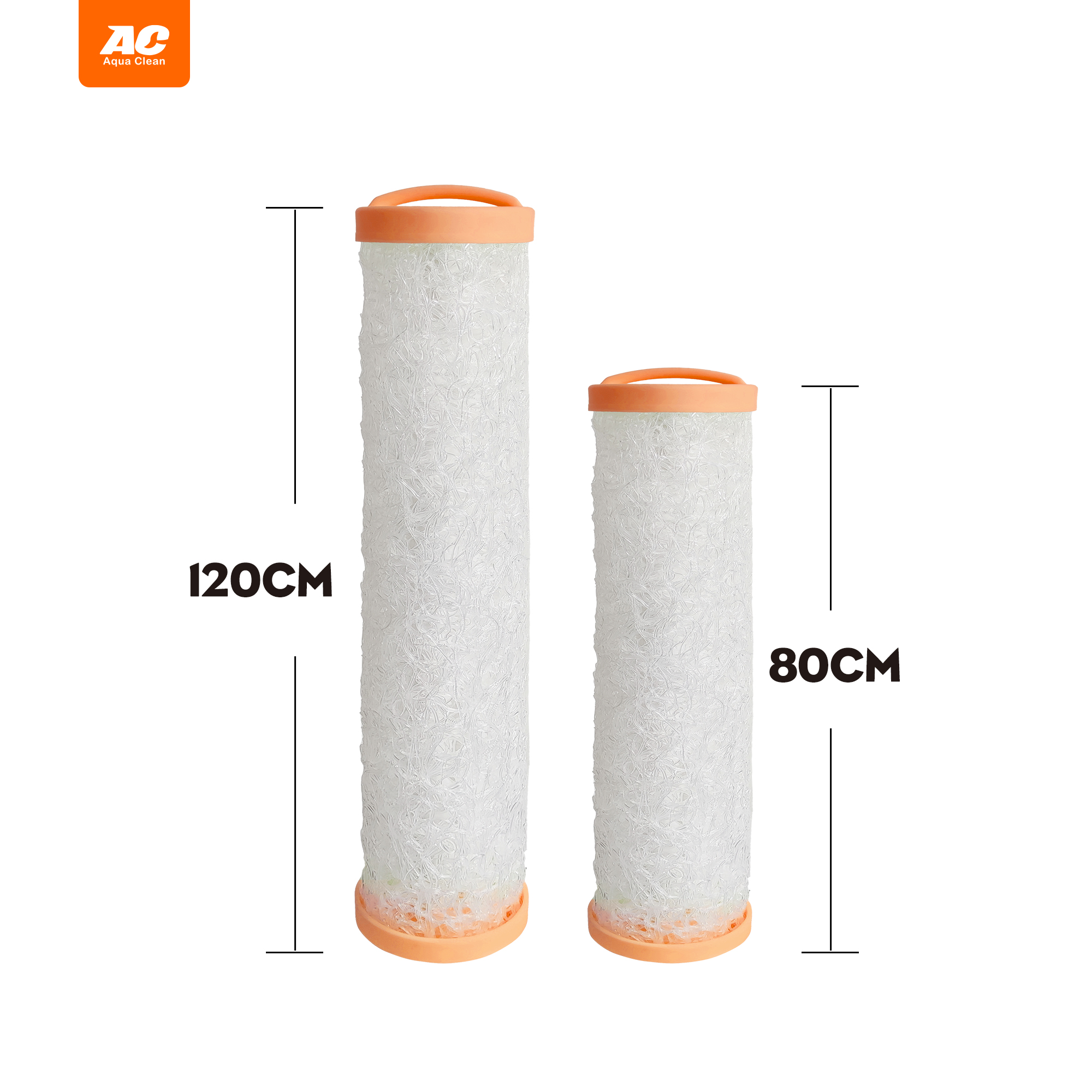

Heights Available
80 cm / 120 cm
Patent No.
2024204437079
Functions
Physical + Biological Dual Filtration
Applications
Koi pond filter chambers, fish farms, aquaponics, landscape ponds
The Pond Filter of the Future, Available Today
Koi keeping is supposed to be a relaxing and rewarding hobby, not a constant battle with murky water and painful maintenance. The AC Koi Biological Pillar simplifies the entire filtration process: it performs both mechanical and biological duties in a single, easy‑to‑clean column, saving you space, time, and effort.
Whether you are a hobbyist looking to upgrade your backyard pond, or a commercial farmer seeking a more efficient biofilter, the Koi Biological Pillar offers a proven, patented, and practical solution.
